WATTECO - Flash O
The Flash’O is a LoRaWAN meter interface that transmits the accumulated number of LED flashes from any pulse meter, including water, gas, electricity, and energy meters.
The counter value can later be converted into an energy unit, such as kilowatt-hours (kWh), within the dashboard or during data analysis. The conversion depends on the number of impulses per kWh, which varies by meter model.
Table of contents
- Specifications
- Documents
- Ordering Info
- Button Actions, Modes and LED States
- Compatibility of Electricity Meters
- Installation & Placement Guidelines
- Adding the Device to TTN
- Optional settings
- Payload formatter
Specifications
- Price ca. CHF 183.- (15.07.2020)
- Sensors:
- Optical Probe: Compatible with meters emitting LED pulses up to 500 pulses per second
- Cable length approx. 0.5m
- Protection: IP55
- Power Supply: 1 battery, 3.6 V, 3600mAh, Lithium
- Expected life time: up to 12 years with 1 telegram per day
- Up to 8 years with one measurement per hour and one transmission per day
- Expected life time: up to 12 years with 1 telegram per day
- LoRaWAN Version 1.0.2 Region Parameter rev B
- LoRaWAN Device Class Class A
- Protection Rating IP55
- Operating Temperature -20°C to +50°C
- Dimensions 84 x 82 x 85 mm
Documents
- Payload description from support.watteco.com (2020-07-15)
- Datasheet from watteco.fr (2020-07-15)
- Online Device Support Page
Ordering Info
- Ordering Link
- Product Ref 50-70-071 (FLASH’O with sensor - mounted in factory with 0.5m cable)
Button Actions, Modes and LED States
The device does not have a physical button, but a magnetic contact. Hold a magnet to the device wall where the sticker ILS
is.
Action | Description | LED Status |
---|---|---|
Hold magnet > 1s on ILS sticker | Power on and join network | 1. LED will flash red during this 1s period 2. Waiting to join LoRa network: LED blinks shortly red every 5s 3. Join LoRa network success: green LED solid on for 3s |
Hold magnet > 5s on ILS sticker | Power off | 1. LED will flash red during this 5s period 2. Before device turns of it flashes red 5 times in 3s |
Pass magnet over ILS sticker | Switch on/off configuration mode | 1. The LED blinks red (3s off, 3s on) while in config mode 2. The device sends an uplink frame every minute. 3. The configuration mode lasts 10 minutes |
Quick passage and long hold over ILS sticker | Factory reset | All the applicative settings gets deleted and set to factory default |
Compatibility of Electricity Meters
The device was successfully tested with the following products.

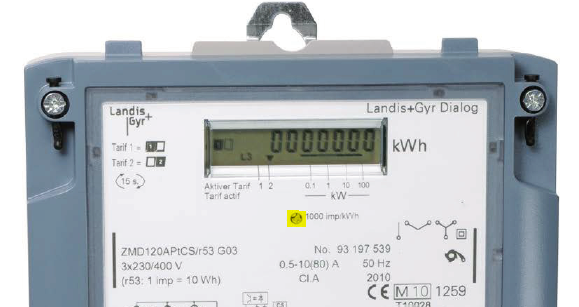

- Landis & Gyr ZMD120AP (1’000 impulses per kWh)
- Place the sensor over the LED (yellow colored)

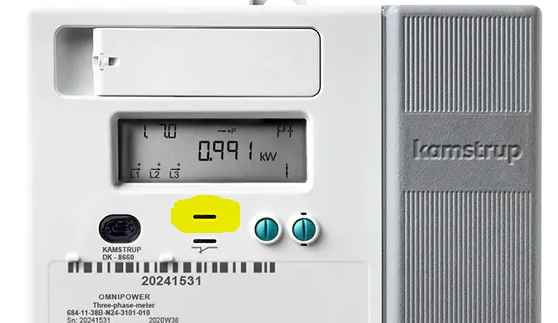

- Kamstrup DK-8660 Omnipower (1’000 impulses per kWh)
- Place the sensor over the LED (yellow colored)
Installation & Placement Guidelines
To ensure optimal sensor performance
- minimize the number of physical obstacles between the device and the LoRaWAN gateway
- place the sensor as far as possible away from electrical cables
- mount the sensor as high as possible
- ensure that the cable gland is oriented downward to have the antenna oriented correctly
Adding the Device to TTN
- The supplier should give you a csv file where you can find the
DevEUI
,AppEUI
andAppKey
- Create a new application
- Under
End devices
in the application click(+) Register end device
- Under
Input method
selectEnter end device specifics manually
- Under
Frequency plan
selectEurope 863-870 Mhz (SF9 for RX2 - recommended)
- Under
LoRaWAN version
select1.0.3
- Under
JoinEUI
enter theApp EUI
from the App and pressConfirm
- Enter as well the
DevEUI
and theAppKey
from the App - Set an end-device name
- Press
Register end device
- Add the payload formatter from below, either to the device itself or if all devices in the app are from the same type, to the application
- Now put a magnet longer than 1s on the
ILS
sticker and the device should switch on - The device should log in and you should see in TTN a green circle as
Status
in the tabDevice Overview
.- if not, please wait several hours and check again. The first attempt might take a while.
- Change the sampling rate and battery reporting, as described below. Per default the device only sends one message a day!
- Now the device should join the network and you can see the incoming telegrams in the
Live data
section
Optional settings
Change sampling rate and battery reporting
- The Flash’O sends per default a telegram once a day with the counter value.
- If you want to change that you have to send a telegram to the device. To do so follow the instructions below.
- In TTN, select the device in
End devices
and change to the tabMessaging
, selectSchedule Downlink
- Put the device in
Configuration Mode
(see table above). In this mode, the device sends a telegram every minute and opens a window for receiving Downlink messages for configuration. - Change the
FPort
to125
- Copy/paste the following payloads step by step into the
Payload
field and pressSchedule downlink
. Open a second tab with theLive data
view, to see whether the command got transmitted.- deactivate standard report:
11 06 00 0f 00 04 02 23 00 00 00 00 00 00 00 00
- activate battery report every 24 hours or 0.1V at min 10 minutes:
11 06 00 50 15 00 06 04 80 0a 85 a0 00 64 00 64 09
- activate batch report at least every 15min samples or 200 impulses:
11 06 00 0f 1d 04 02 00 00 00 80 0f 00 00 00 c8 00 00 00 01 01
- activate battery report every 24 hours or 0.1V at min 10 minutes:
- deactivate standard report:
- For details and other configurations see Frame Examples
Payload formatter
/*
