Decentlab - DL-ATM22

Manufacturer: Decentlab
Product: DL-ATM22

Wind speed, wind direction and temperature sensor.

Specifications
Documents
Ordering Info
Device specific Information
1. Operating Modes
Adding the Device to TTN
Payload formatter

Specifications

Outdoor device
Price ca. CHF 1’546.- (Sept. 2019)
Sensors
- Horizontal Wind Speed
  Range: 0 … 30 [m/s], Resolution 0.01 m/s, Accuracy max(0.3 m/s; 3% of measurement)
- Wind Gust
  Range: 0 … 30 m/s, Resolution 0.01 [m/s], Accuracy max(0.3 m/s; 3% of measurement)
- Wind Direction
  Range: 0 … 359 [°], Resolution: 1°, Accuracy: ±5°
- Tilt
  Range: -90° … +90 [°], Resolution: 0.1°, Accuracy: ±1°
- Temperature:
  Range: -50 … +60 [°C], Resolution: 0.1 °C, Accuracy: ±0.6 °C not protected from solar radiation
Power Supply: 2 C alkaline batteries
Size: Device 135 × 81 × 70 mm Sensor: 100 x 100 x 160 mm
Weight: 1020 g including batteries and sensor (890 g without batteries)
Operating conditions: -20 … 50 °C, 0 … 100 % RH
Cable length: 5 m

Documents

Ordering Info

Ordering Link

Device specific Information

Operating Modes

The device has four operating modes

Reset
System (re-)start; both LEDs fade in and out.
Active mode (ON)
Periodic measurements and data transmissions; green LED flashes for each measurement.
Sleep mode (OFF)
No measurements and data transmissions (power save mode, for shelf storage). LEDs are off.
Test mode
Measurements and data transmissions at fastest possible rates; blue LED is on.

Switching between operating modes

The user button allows to switch between the operating modes as shown in the two llustrations below.
To perform a device reset, switch to sleep mode first (if necessary) by pushing and holding the button for 3 seconds until the LEDs flash three times; wait 3 seconds; then push and hold the button for 3 seconds until the LEDs fade in and out.
To switch between active and test mode, push the button for 1 second (blue LED on / off). If the blue LED is off, the device is in active or sleep mode. If the blue LED is on, the device is in test mode.

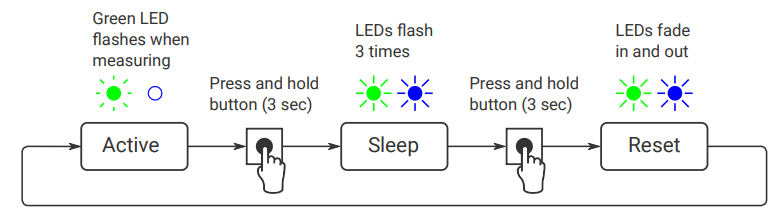

Switching between active and sleep mode (switch off / on, reset)

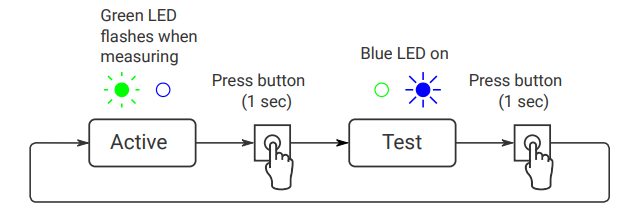

Switching between active and test mode

HINT
To check whether the device is active or in sleep mode (on or off), push the button twice

if the blue LED goes on and off, the device is in active mode
otherwise, the device is in sleep mode

Adding the Device to TTN

Before a device can communicate via “The Things Network” we need to register it with an application.

Create a new application
Under Overview click (+) Register device
Under Input method select Select the end device in the LoRaWAN Device Repository
Enter the following device information
- End device brand select Decentlab GmbH
- Model select DL-ATM22
- Hardware Ver. select 1
- Firmware select 1.5.7
  - Profile (Region) select EU_863_870
Under Frequency plan select Europe 863-870 Mhz (SF9 for RX2 - recommended)
Under JoinEUI enter the App EUI from the sticker
Enter as well the DevEUI and the AppKey from the sticker
Set an end-device name
Press Register end device
Switch on the device (see section Operating Modes from above)

Now the device should join the network and you can see the incoming telegrams in the Live data section
The payload formatter should already be preset. If not, you can copy/paste it from below

Payload formatter

var decentlab_decoder = {
  PROTOCOL_VERSION: 2,
  SENSORS: [
    {length: 8,
     values: [{name: 'wind_speed',
               displayName: 'Wind speed',
               convert: function (x) { return (x[0] - 32768) / 100; },
               unit: 'm⋅s⁻¹'},
              {name: 'wind_direction',
               displayName: 'Wind direction',
               convert: function (x) { return (x[1] - 32768) / 10; },
               unit: '°'},
              {name: 'maximum_wind_speed',
               displayName: 'Maximum wind speed',
               convert: function (x) { return (x[2] - 32768) / 100; },
               unit: 'm⋅s⁻¹'},
              {name: 'air_temperature',
               displayName: 'Air temperature',
               convert: function (x) { return (x[3] - 32768) / 10; },
               unit: '°C'},
              {name: 'x_orientation_angle',
               displayName: 'X orientation angle',
               convert: function (x) { return (x[4] - 32768) / 10; },
               unit: '°'},
              {name: 'y_orientation_angle',
               displayName: 'Y orientation angle',
               convert: function (x) { return (x[5] - 32768) / 10; },
               unit: '°'},
              {name: 'north_wind_speed',
               displayName: 'North wind speed',
               convert: function (x) { return (x[6] - 32768) / 100; },
               unit: 'm⋅s⁻¹'},
              {name: 'east_wind_speed',
               displayName: 'East wind speed',
               convert: function (x) { return (x[7] - 32768) / 100; },
               unit: 'm⋅s⁻¹'}]},
    {length: 1,
     values: [{name: 'battery_voltage',
               displayName: 'Battery voltage',
               convert: function (x) { return x[0] / 1000; },
               unit: 'V'}]}
  ],

  read_int: function (bytes, pos) {
    return (bytes[pos] << 8) + bytes[pos + 1];
  },

  decode: function (msg) {
    var bytes = msg;
    var i, j;
    if (typeof msg === 'string') {
      bytes = [];
      for (i = 0; i < msg.length; i += 2) {
        bytes.push(parseInt(msg.substring(i, i + 2), 16));
      }
    }

    var version = bytes[0];
    if (version != this.PROTOCOL_VERSION) {
      return {error: "protocol version " + version + " doesn't match v2"};
    }

    var deviceId = this.read_int(bytes, 1);
    var flags = this.read_int(bytes, 3);
    var result = {'protocol_version': version, 'device_id': deviceId};
    // decode payload
    var pos = 5;
    for (i = 0; i < this.SENSORS.length; i++, flags >>= 1) {
      if ((flags & 1) !== 1)
        continue;

      var sensor = this.SENSORS[i];
      var x = [];
      // convert data to 16-bit integer array
      for (j = 0; j < sensor.length; j++) {
        x.push(this.read_int(bytes, pos));
        pos += 2;
      }

      // decode sensor values
      for (j = 0; j < sensor.values.length; j++) {
        var value = sensor.values[j];
        if ('convert' in value) {
          result[value.name] = {displayName: value.displayName,
                                value: value.convert.bind(this)(x)};
          if ('unit' in value)
            result[value.name]['unit'] = value.unit;
        }
      }
    }
    return result;
  }
};

function decodeUplink(input) {
  return {
    data: decentlab_decoder.decode(input.bytes),
    warnings: [],
    errors: []
  };
}
