Adeunis - Analog

• Manufacturer: Adeunis
• Product: Analog

The Adeunis Analog is a ready-to-use IoT sensor that transforms any type of 0-10 V or 4-20 mA wired sensor into a communicating sensor. It has 2 independently configurable analog inputs (channel A and channel B).

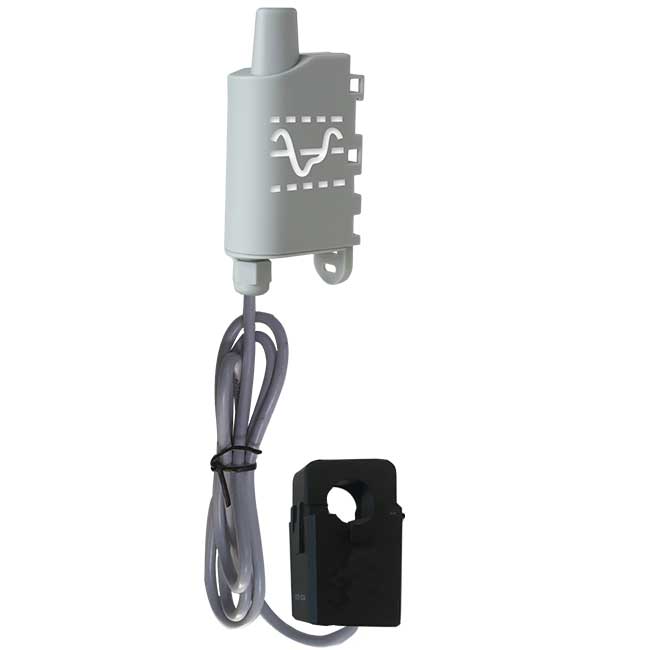

Current Sensor Variant

Adeunis bietet den Analog-Transmitter auch als Current Sensor Bundle an, inkl. Stromwandler (CT Clamp). Dabei wird der 4-20mA Eingang des Analog-Transmitters genutzt. Verfügbare Varianten:

• Precision: ±2%
• Cable length: ca. 70 cm
• Operating Temperature Transducer: -25 … +60 °C
• Current Sensor Product page

Table of contents

1. Current Sensor Variant
2. Specifications
3. Documents
4. Ordering Info
5. Device specific Information
   1. Operating Modes
   2. LED States
   3. Configuration
6. Adding the Device to TTN
7. Optional Settings
   1. Downlink mechanism
   2. Key registers
   3. Change keep alive period
      1. Examples
   4. Change data transmission period
      1. Examples
   5. Read current configuration
8. Payload formatter

Specifications

• indoor/outdoor device
• 2 analog inputs independently configurable as 0-10V or 4-20mA
• 2 digital inputs associated with analog inputs
• Protection: IP67
• Power Supply:
  • ANALOG (ARF8190BA): Replaceable battery, 2600 mAh
  • ANALOG PWR (ARF8200AA): External power supply, 6-24V DC, max. 90 mA
• Size: 105 x 50 x 27 mm
• Weight: 70 g (battery version), 49 g (powered version)
• Operating Temperature Range:
  • Battery version: -25 … +70 °C
  • Powered version: -25 … +40 °C
• Humidity: 0 … 85 %rH (non-condensing)
• Minimum scan period: 30 seconds
• Data logging: up to 24 samples per frame
• Mounting: DIN Rail, Tube, Wall, Collar

Documents

• Datasheet Analog LoRaWAN EU863-870
• Datasheet Current Sensor LoRaWAN EU863-870

Ordering Info

• Part Number: ARF8190BA (battery) / ARF8200AA (external power)
• Product page

Device specific Information

Operating Modes

The device has the following operating modes:

                        ┌───────────┐
                        │ PARK MODE │ (standby, minimal consumption)
                        └─────┬─────┘
                              │ Magnet on product > 5s
                              ▼
  ┌──────────────┐     ┌──────────────┐         ┌─────────────────────┐
  │ COMMAND MODE │◄────│  PRODUCTION  │◄────────│ Replacing the       │
  │              │────►│     MODE     │         │ battery             │
  └──────────────┘     └──────┬───────┘         └─────────────────────┘
  USB-C connect/               │                          ▲
  disconnect            Send "battery                     │
                         low" flag                        │
                              │                           │
                              ▼                           │
                        ┌───────────┐                     │
                        │    OFF    │─────────────────────┘
                        │(dead bat.)│
                        └───────────┘

• PARK mode: The product is delivered in PARK mode. It is in standby and its consumption is minimal. To switch out of PARK mode, hold a magnet on top of the product for more than 5 seconds. The green LED illuminates to indicate magnet detection and then flashes quickly during the starting phase. The device then sends its configuration and data frames.
• PRODUCTION mode: Normal operating mode for final use, optimized for maximum battery autonomy.
• COMMAND mode: Allows configuration of the product registers. Connect a USB-C cable and use the IoT Configurator. Requires the Silabs USB to UART Bridge VCP Driver. To exit, use the disconnect function in the IoT Configurator or disconnect the USB-C cable. The product returns to its previous mode (PARK or PRODUCTION).
• OFF: The product switches off automatically when the battery is dead. Replace the battery and it returns to PRODUCTION mode.

Note
A deactivation via magnet is not described in the manufacturer documentation.

LED States

Configuration

• The device can be configured via USB using the Adeunis IoT Configurator software or via LoRaWAN downlinks.
• Each of the 2 channels (A and B) can be independently configured as:
  • 0-10V voltage input
  • 4-20mA current input
  • deactivated
• Threshold alarms can be configured for each channel (low, high or both).
• Transmission can be periodic and/or event-driven.

Adding the Device to TTN

• Before a device can communicate via “The Things Network” we have to add it to an application.


1. Create a new application
2. Under End devices in the application click (+) Register end device
3. Under Input method select Select the end device in the LoRaWAN Device Repository
4. Enter the following device information
   • End device brand select Adeunis
   • Model select Analog
   • Hardware Ver. select the appropriate version
   • Firmware select the appropriate version
   • Profile (Region) select EU_863_870
5. Under Frequency plan select Europe 863-870 Mhz (SF9 for RX2 - recommended)
6. As JoinEUI enter the App EUI, fill in as well the DevEUI and the AppKey
7. Set an end-device name
8. Press Register end device

• Now the device should join the network and you can see the incoming telegrams in the Live data section
• The payload formatter should already be preset. If not, you can copy/paste it from below

Optional Settings

The Adeunis Analog can be configured either via USB (using the Adeunis IoT Configurator software) or via LoRaWAN downlink messages.

For detailed register descriptions refer to the Technical Reference Manual.

Downlink mechanism

All configuration downlinks are sent on FPort 1. The Adeunis platform uses a register-based system with two downlink frame types:

Registers are addressed via a CONFID index: Register number = 300 + CONFID. For example, CONFID 0x00 = Register S300, CONFID 0x14 = Register S320.

Key registers

Change keep alive period

1. In the TTN Console on the device view, select the device and change to the tab Messaging, select Downlink
2. Change the FPort to 1
3. Copy/paste the payload into the Payload field
4. Press Send
5. The device only receives downlink data after a transmission. Wait for the next uplink or trigger one manually.

Examples

• Keep alive every 60 min (default): 41 00 06
• Keep alive every 120 min: 41 00 0C
• Keep alive every 360 min (6h): 41 00 24
• Keep alive every 1440 min (24h): 41 00 90

Change data transmission period

Same procedure as above, but with register S301 (CONFID 0x01).

Note: The minimum data transmission period is 10 minutes (value = 1). Shorter intervals like 5 minutes are not possible in normal operating mode.

Examples

• Data every 10 min (default, minimum): 41 01 01
• Data every 30 min: 41 01 03
• Data every 60 min: 41 01 06

Read current configuration

To read the current values of the keep alive and data transmission period, send the following downlink on FPort 1:

40 00 01

The device will respond with an uplink frame 0x31 containing the current values of registers S300 and S301.

Note
After setting registers via 0x41, the device saves the configuration and performs a restart automatically. For a complete list of all configurable registers (thresholds, channel types, debounce, etc.) refer to the Technical Reference Manual.

Payload formatter

function decodeUplink(input) {
  var data = {};
  var bytes = input.bytes;

  // Status byte
  data.battery_state_abs = (bytes[1] & 0x02) ? 0 : 3; // lowBattery flag: 0=critical, 3=good

  var frameCode = bytes[0];

  if (frameCode === 0x42 || frameCode === 0x30) {
    // 0x42 Analog data / 0x30 Analog keep alive
    var typeA = bytes[2] & 0x0f;
    var rawValueA = ((bytes[2] & 0x00) << 24 | (bytes[3]) << 16 | (bytes[4]) << 8 | bytes[5]) & 0x00ffffff;

    if (typeA === 1) {
      data["voltage_volt_abs@channelA"] = parseFloat((rawValueA / 1000000).toFixed(3));
    } else if (typeA === 2) {
      data["current_ampere_abs@channelA"] = parseFloat((rawValueA / 100000000).toFixed(6));
    }

    var typeB = bytes[6] & 0x0f;
    var rawValueB = ((bytes[6] & 0x00) << 24 | (bytes[7]) << 16 | (bytes[8]) << 8 | bytes[9]) & 0x00ffffff;

    if (typeB === 1) {
      data["voltage_volt_abs@channelB"] = parseFloat((rawValueB / 1000000).toFixed(3));
    } else if (typeB === 2) {
      data["current_ampere_abs@channelB"] = parseFloat((rawValueB / 100000000).toFixed(6));
    }
  }

  return {
    data: data,
    warnings: [],
    errors: [],
  };
}
